NEW QUESTION # 41
What VI is typically used to terminate an Error Cluster wire and to display any error message?
- A. Merge Errors
- B. One Button Dialog/Two Button Dialog
- C. Simple Error Handler
- D. Generate Front Panel Activity
Answer: C
NEW QUESTION # 42
Which combination of words correctly completes the following statement?
Unlike __________, which display an entire waveform that overwrites the data already stored,
___________ update periodically and maintain a history of the data previously stored.
- A. Plots; Graphs
- B. C harts; Graphs
- C. Charts; Plots
- D. Graphs; Charts
Answer: D
NEW QUESTION # 43

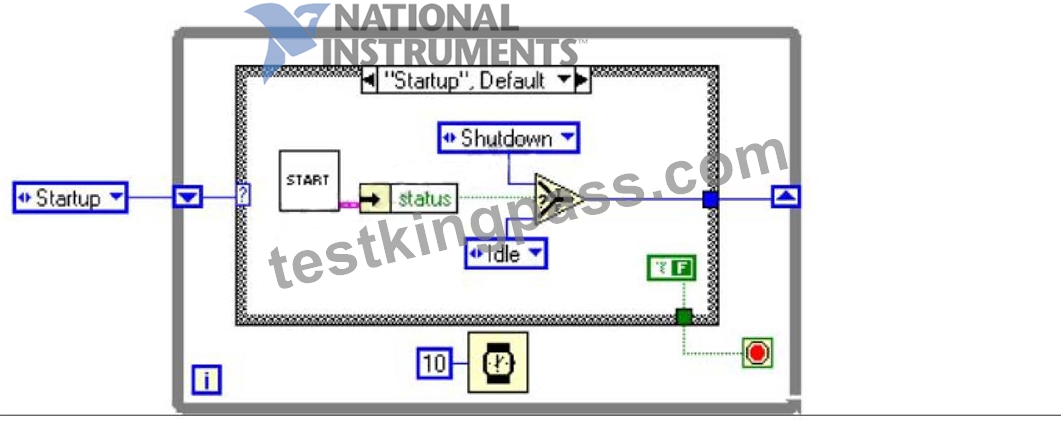

The following figure is an example of which common type of VI architecture?
- A. General VI
- B. State Machine VI
- C. Multiple Case Structure VI
- D. Parallel Loop VI
Answer: B
NEW QUESTION # 44
Formula nodes accept which of the following operations?
- A. Basic programming language instructionsInputandPrint
- B. The use ofnestedFormula Nodestructures
- C. Embedding of SubVIs within the Formula Node
- D. Pre and post increment (++) and decrement (--) as in the C language
Answer: D
NEW QUESTION # 45
Which of the following terminals controls how many times a For loop executes?
- A. Option D
- B. Option C
- C. Option B
- D. Option A
Answer: A
NEW QUESTION # 46
Which of the following terminals controls how many times a For Loop will execute?
- A. Option D
- B. Option C
- C. Option B
- D. Option A
Answer: A
NEW QUESTION # 47
Under which of the following conditions does a For loop stop executing?
- A. None of the above
- B. When the value of the iteration terminal,C:\Documents and Settings\RraAsShHiIdD\Desktop\untitled.JPG, is one more than the value of thecount terminal,C:\Documents and Settings\RraAsShHiIdD\Desktop\untitled.JPG
- C. When the value of the iteration terminal,C:\Documents and Settings\RraAsShHiIdD\Desktop\untitled.JPG, is one less than the value of thecount terminal,C:\Documents and Settings\RraAsShHiIdD\Desktop\untitled.JPG
- D. When afalsevalue is present at the conditional terminal and the conditionalterminal isC:\Documents and Settings\RraAsShHiIdD\Desktop\untitled.JPG
Answer: C
NEW QUESTION # 48
The Wait function can be added to While Loops:
- A. To free up available memory.
- B. To allocate memory used by the CPU.
- C. To allow the processor time to complete other tasks.
- D. To reserve which processor the code is running on.
Answer: C
NEW QUESTION # 49
Which VI memory components are ALWAYS S resident for a SubVI? (Choose all apply)
- A. Data Space
- B. Block Diagram
- C. Front Panel
- D. Code
Answer: A,D
NEW QUESTION # 50
What is one disadvantage of using the State Machine VI architecture?
- A. A State Machine can only traverse states in order
- B. The diagram becomes significantly larger when changing from a general architecture to a State Machine
- C. State Machines cannot acquire data or use DAQ functions
- D. If two state changes occur at the same time, only the first state change will be handled and the second will be lost
Answer: D
NEW QUESTION # 51

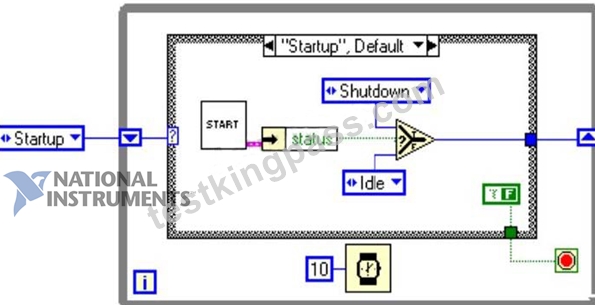

The following block diagram represents which common type of VI architecture?
- A. General VI
- B. State Machine VI
- C. Multiple Case Structure VI
- D. Parallel Loop VI
Answer: B
NEW QUESTION # 52

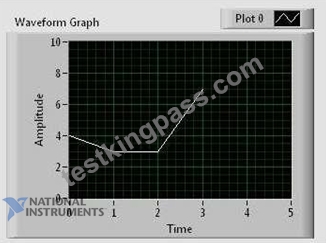

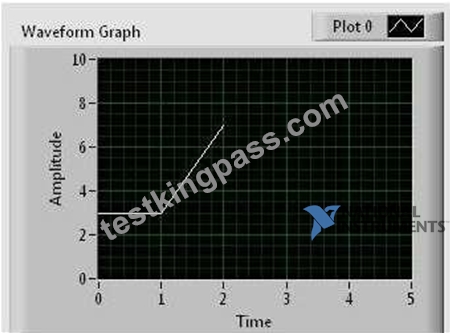

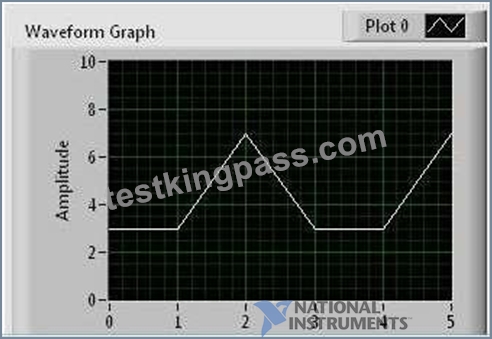

Which Waveform Graph could be a representation of the data in the Numeric Array control?
- A.
- B.
- C.
- D.
Answer: A
NEW QUESTION # 53
Which is the correct order for the signal to propagate through components when acquiring a signal?
- A. Sensor>Terminal Block>DAQ>LabVIEW
- B. DAQ>Sensor>Terminal Block>LabVIEW
- C. Terminal Block>LabVIEW>Sensor>DAQ
- D. Sensor>DAQ>Terminal Block>LabVIEW
Answer: B
NEW QUESTION # 54

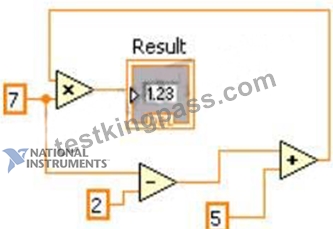

In the figure below, what will Result equal when this calculation is executed?
- A. 0
- B. 1
- C. 2
- D. Indeterminate
Answer: C
NEW QUESTION # 55
What mechanical action of a Boolean would you use to mimic a button on a Windows dialog?
- A. Latch UntilReleased
- B. Switch Until Released
- C. Switch When Released
- D. Latch When Released
Answer: D
NEW QUESTION # 56
What is the result of the following Array subtraction?
- A. A 1-D Array of {-25, 25}
- B. A 1-D Array of {-25, 25, 50}
- C. A 2-D Array of {{-25, -50, -50}, {50, 25, 25}}
- D. A 1-D Array of {75, -50, 25}
Answer: A
NEW QUESTION # 57
Which chart update mode plots new data from left to right, then clears the chart and plots the newer data?
- A. Scope Chart
- B. Step Chart
- C. Sweep Chart
- D. Strip Chart
Answer: A
NEW QUESTION # 58

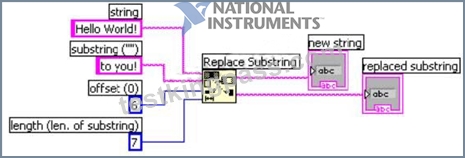

What is the result in new string after the following code has executed?
- A. Hello to you!!
- B. Helloto you!
- C. Hello Wto you!
- D. Hello to you!
Answer: D
NEW QUESTION # 59

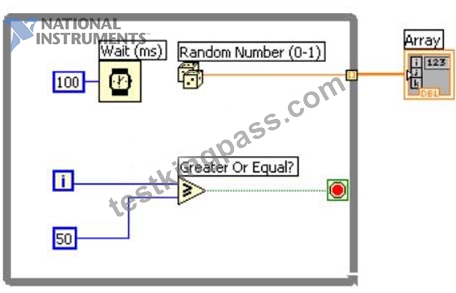

Which of the following statements is true regarding the execution of the following code?
- A. The loop will iterate 50 times.
- B. A For Loop that has a 50 wired to the count terminal will perform the same operation.
- C. The loop will iterate 51 times.
- D. The loop will iterate 49 times.
Answer: C
NEW QUESTION # 60
Clicking on the _________ button allows you to bypass a node in the Block Diagram without single-stepping through the node.
- A. Step Out
- B. Step Into
- C. Step Over
- D. Step Through
Answer: C
NEW QUESTION # 61
Which of the following is NOT a traditional debugging feature used to help find errors in a VI:
- A. Single Stepping
- B. Stop Values
- C. Highlight Execution.
- D. Breakpoints
Answer: B
NEW QUESTION # 62

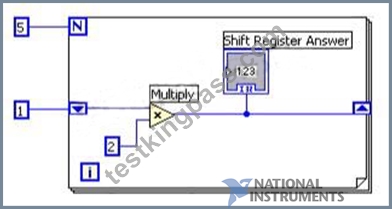

What is the value in Shift Register Answer after the following code has executed?
- A. 0
- B. 1
- C. 2
- D. 3
Answer: C
NEW QUESTION # 63
Which chart update mode plots new data from left to right, then clears the chart and plots the newer data?
- A. Scope Chart
- B. Step Chart
- C. Sweep Chart
- D. Strip Chart
Answer: A
NEW QUESTION # 64
Which of the following statements is false?
- A. A SubVI connector pane defines where to wire inputs and outputs
- B. The color of a SubVI connector pane terminal matches the data type it is connected to
- C. You must have an icon/connector to use a SubVI
- D. A SubVI icon can be edited from the functions palette
Answer: D
